Marble glue automatic filling machine

Product introduction:

DCS-50-ST-CY   Marble glue automatic filling machine . Fully automatic filling production line, suitable for fluids such as marble glue, paint, varnish oil, white latex paint, daily chemical and so on.

Product model:

DCS-50-ST-CY  Marble glue automatic filling machine

Product details：

DCS-50-ST-CY Marble glue automatic filling machine. Four filling heads are used for filling at the same time, which can quickly complete product packaging and improve production efficiency. The parts in contact with the material are made of stainless steel 304, the frame is made of stainless steel 201, the load-bearing position is made of carbon steel material to ensure that the machine is stable and durable. Fully automatic filling production line, suitable for fluids such as marble glue, paint, varnish oil, white latex paint, daily chemical and so on.

Technical indexes

Weighing scope	<30kg	Barrel Dimensin	(Suitable for various types of packing drums)
division value	1g，2g，5g	power supply	AC380±10%  50HZ
class of accuracy	X（0.2）level	air source	>0.4MPa
Filling speed	20-40barrel/minutes	Outlook size	6500x1200x1600(mm)

Product features:

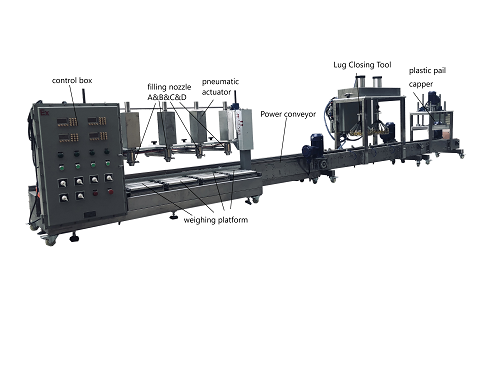

1. DCS-50-ST-CY Marble glue automatic filling machine. The packaging material can self-flow to the constant pressure hopper through the high-position cylinder；Set the weight to be filled in the control instrument；The worker places the empty barrel on the weighing platform, and the four filling nozzle automatically metering and filling；After filling, the worker pushes the barrel forward to the power conveyor belt, place the barrel cover manually, the machine automatically transfers to the capping position, automatically capping, and automatically outputs the packaging barrel.

2.  Double iron barrel capping device to ensure high efficiency of filling and capping

3. Dual-mode capping system, suitable for iron and plastic barrels. More able to meet the needs of production packaging.

4. Automatic pressure difference correction function, so the filling effect is fast and accurate;

5. Height of the filling nozzle can be adjusted manually, which is suitable for various sizes of packaging barrels;

6. Ten formulas can be set and store;

7. Two filling methods: net weight and gross weight;

8. Feeding fast / slow secondary speed;

Field of application: Fully automatic filling production line, suitable for fluids such as marble glue, paint, varnish oil, white latex paint, daily chemical and so on.

Machine customization: Machines can be customized according to the actual conditions and needs of the customer's factory.
